Drag Drill Bits: Chevron vs Step Drag Bit

Roller bits use rotating cones with teeth or inserts to crush and grind rock, making them suitable for harder formations. Drag bits use fixed blades that shear and scrape material, performing best in soft to medium formations. Drag bits typically have fewer moving parts, lower maintenance needs, and faster penetration rates in appropriate ground conditions.

Common drag bit configurations include Chevron bits, which feature a V-shaped blade pattern for balanced cutting action, and Step Drag bits, which use staggered blade placement to distribute cutting load progressively. Other variations include fishtail and spade-style drag bits, each optimized for specific formation types, hole diameters, and drilling method requirements.

A Chevron drag bit uses a symmetrical V-shaped blade arrangement that provides balanced, centralized cutting for consistent hole gauge. A Step Drag bit positions blades at staggered heights, allowing progressive cutting that reduces torque spikes and chatter in variable formations. Both are alloy steel blade designs suited to soft-to-medium ground conditions.

Drag bits from Infinity Tool MFG perform best in soft to medium formations, including clay, sand, silt, and softer sedimentary rock. Their shearing action is less effective in hard, abrasive, or highly consolidated rock, where PDC or roller cone bits are typically recommended for better durability and penetration rates.

Yes, Infinity Tool MFG offers custom manufacturing alongside standard off-the-shelf drag bits. Their in-house engineering and drafting team can tailor blade configuration, diameter, and connection type to match specific formation conditions and rig setups across HDD, water well, oil & gas, geothermal, and mining projects.

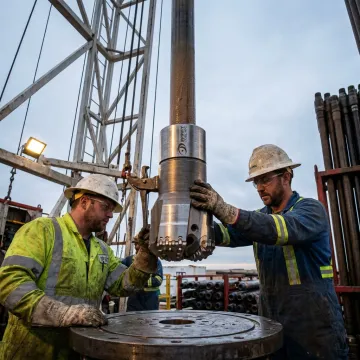

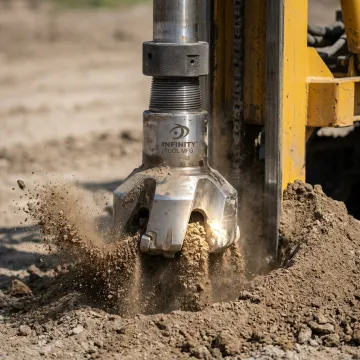

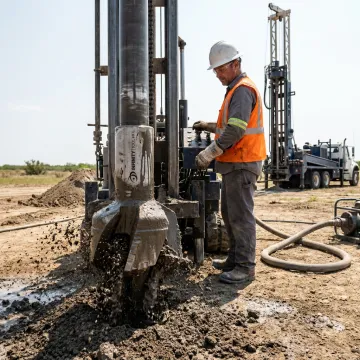

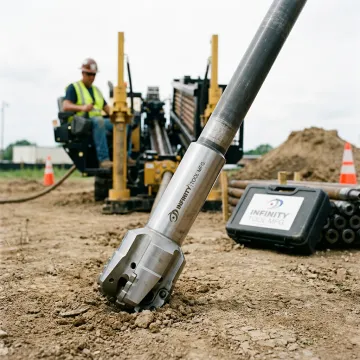

Drag bits are commonly used in Horizontal Directional Drilling (HDD) and rotary drilling methods. They are frequently selected for pilot hole drilling in water well, oil & gas, geothermal, construction/geotechnical, and mining applications where soft to medium formations allow for efficient blade-based cutting action.
