DTH Drill Bits

Down-The-Hole (DTH) drilling is a percussion method where the hammer and bit travel together down the borehole, delivering impact energy directly at the rock face rather than through the drill string. This minimizes energy loss over depth, making it highly effective for penetrating hard, abrasive rock in mining, construction, and water well applications.

Rotary drilling relies on rotational torque and downward pressure through the drill string to cut or crush rock, best suited to softer formations. DTH drilling uses a pneumatic hammer positioned at the bit to deliver direct percussive impact at the rock face, providing faster penetration and straighter boreholes in hard, abrasive rock compared to rotary methods.

Infinity Tool MFG's DTH hammer bits are available in diameters ranging from 2" to 18" (50.8mm to 457.2mm), covering 12 distinct shank and connection models including QL40, DHD340, COP32, and Domintor 100. This broad range ensures compatibility with virtually any DTH hammer system used across mining, construction, and water well drilling.

DTH drill bits are constructed from high-quality steel bodies fitted with tungsten carbide button inserts. Carbide grade options include Standard, Diamond, and Bluemaxx, each offering different wear resistance and impact strength to match specific rock hardness and abrasiveness encountered in mining, geothermal, and oil & gas drilling projects.

Yes. Infinity Tool MFG offers extensive customization including four face shapes (Concave, Convex, Flat, Double Gauge), three button shapes (Domed, Ballistic, Semi-Ballistic), and multiple carbide grades. Custom diameters, connection types, and configurations can also be manufactured on request to match unique formation conditions and hammer system requirements.

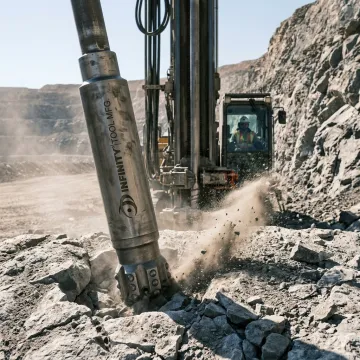

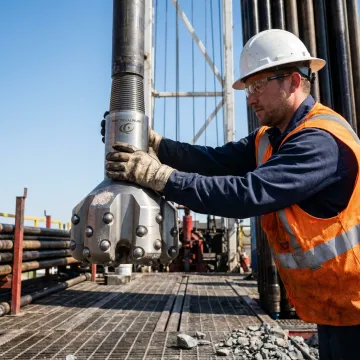

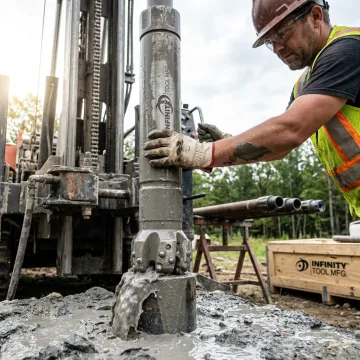

DTH drill bits are used across mining, oil & gas, geothermal, water well, horizontal directional drilling (HDD), and construction/geotechnical industries. Their percussive design makes them especially effective for penetrating hard, abrasive rock formations encountered in deep well drilling, geological exploration, and civil engineering projects requiring precise, efficient boreholes.
