PDC Drill Bits for Sale

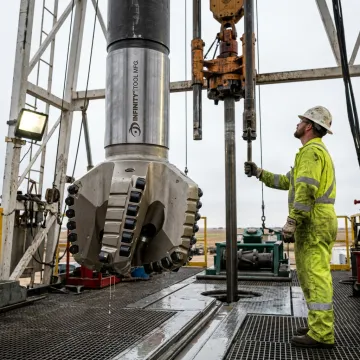

In drilling, PDC stands for Polycrystalline Diamond Compact, referring to both the cutter material and the drill bit type. PDC bits use fixed cutters made from synthetic diamond layers fused to carbide, allowing them to shear rock formations efficiently in oil & gas, water well, geothermal, and construction drilling applications.

PCD, sometimes used interchangeably with PDC, refers to Polycrystalline Diamond material used in cutting tools. In drilling contexts, PCD and PDC bits both use synthetic diamond compacts bonded to a carbide base for durable, high-performance cutting in hard and abrasive rock formations.

A PDC drill bit has a solid steel or matrix body with fixed blades (typically 5 or 6) arranged around the bit face, each embedded with flat, disc-shaped diamond compact cutters. Unlike roller cone bits, PDC bits have no moving parts and feature a fixed-cutter design with nozzles for drilling fluid circulation.

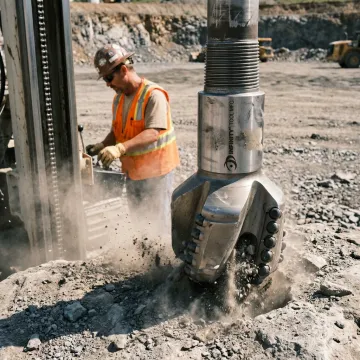

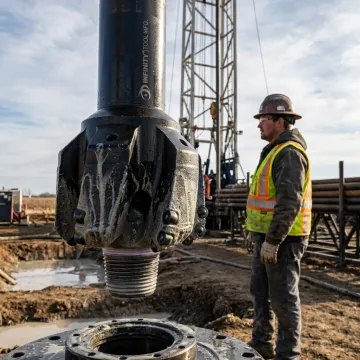

PDC drill bits are engineered for soft, medium, and hard rock formations, including abrasive conditions. Blade configuration, cutter density, and bit profile are selected based on formation hardness, making PDC bits versatile across water well, oil & gas, geothermal, mining, and construction drilling projects.

PDC bits are commonly available in diameters ranging from 8" to 13.5", with API REG PIN connections such as 4-1/2" and 7-5/8" to ensure compatibility with standard drilling equipment. Custom sizes, jetted designs, and back-out cutter options can also be manufactured on request.

Yes, custom PDC bit manufacturing is available for non-standard diameters, connections, blade counts, and cutter configurations. In-house engineering and drafting teams work with customers to design bits suited to specific formation types and drilling equipment requirements.
