Custom Drill Bits Design and Engineering

A custom PDC bit request typically includes the desired diameter, thread connection, number of blades, nozzle design, ground conditions, quantity required, and any project notes. If you are unsure about details such as API REG connection, blade count, or nozzle style, Infinity Tool MFG’s in-house engineering and drafting team can help translate field requirements into a practical design direction.

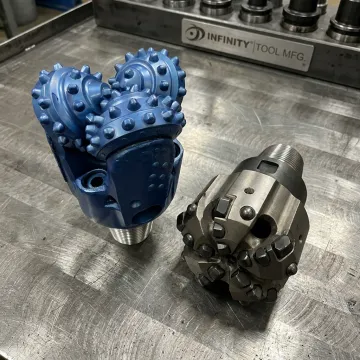

Infinity Tool MFG manufactures and engineers several drilling tool types, including PDC bits, DTH hammer bits, drag bits, tricone bits, directional hammer bits, hole openers, and PDC reamers. Customization can address diameter, connection, blade configuration, nozzle design, ground conditions, and application requirements across oil and gas, geothermal, waterwell, HDD, construction, and mining projects.

PDC bits are often selected for efficient shearing action in suitable formations, while DTH hammer bits are built for percussive drilling applications. Drag bits can perform well in softer conditions, and tricone bits are traditional roller cone tools for varied drilling environments. The best option depends on formation, rig setup, hole size, connection, flushing needs, and performance goals.

Yes. Infinity Tool MFG develops custom and specialized drilling tools for challenging ground conditions, including products such as Cobble Boss Extreme and proprietary PDC designs. Design considerations may include cutter protection, fluid control, reamer centralization, reduced chatter, torque stability, and the ability to move from pilot bore to finished bore efficiently.

Custom drill bits and related drilling tools are used by teams in oil and gas, geothermal and waterwell drilling, construction, horizontal directional drilling, and mining. Infinity Tool MFG also supports broader custom machining needs for industries such as aerospace and defense and medical device manufacturing, where precision machining and engineered components are important.

Yes. Infinity Tool MFG manufactures drilling products in its state-of-the-art American facility in Benton, Illinois. The facility supports advanced CNC work, custom machining, long hole boring, turning, milling, engraving, and CNC-cut threads, allowing the company to produce standard and custom tools with strong control over engineering and manufacturing details.

Infinity Tool MFG offers bit repair services that allow customers to have drilling bits repaired or refurbished. The company’s manufacturing and machining capabilities also support custom work when a project requires more than a standard replacement. Repair suitability depends on the bit type, wear, damage, and whether refurbishment can restore useful field performance.

Custom drill bit engineering is supported by in-house drafting and machining capabilities, including CNC-cut threads, long hole boring up to 80 inches, custom engraving, turning from 32-inch diameter to 120 inches long, and milling from 32-inch diameter to 120 inches long. These capabilities help turn complex designs into functional drilling tools.
